Excavator Forestry Mulcher

product--img
| | | | |
-180° 180°
Excavator mulcher VM Serie
Excavator mulcher VM Serie
CARBIDE TOOTH AND BLADE
Excavator mulcher VM Serie
Excavator mulcher VM Serie
CARBIDE TOOTH AND BLADE

Bite Limiter Mulcher - VM Series

Shearex’s excavator mulcher attachment is the ultimate tool for fast and efficient roadside maintenance, invasive species removal, land clearing, and underbrush maintenance. Experience high visibility, robust rotor design, adjustable motor, and bolt-on liner and skid shoes made of Hardox® 500 for ultimate wear resistance. and easy maintenance or replacement.

Want to see our mulcher in action? Contact us for a free demo!

  • Choose between carbide teeth or blades.
  • CONVEX DX™ Protection System.
  • G2.0 Balancing Standard Zero Vibration Rotor.
  • Blade Angle Optimized for a Perfect Cut.
  • Customer kit in a robust Dewalt Shell Tough Box included with each purchase.
  • Optional Grapple System.
  • Oil cooling system through the flushing line.
  • Poly-Chain® Carbon transmission belt.

Product Specification

EXCAVATOR MULCHER

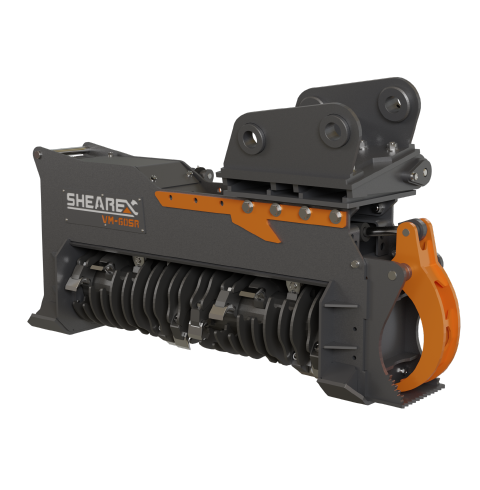

Designed for versatility and power, the Shearex Excavator Mulcher - VM Series - is perfect for land clearing operations. It mounts easily on your excavator and transforms it into a high-efficiency mulching machine, capable of handling the toughest jobs.

CONVEX DX™ PROTECTION SYSTEM

Our unique Convex DX system uses a double-ring to force the material towards the center of the tooth, effectively reducing the amount of material being cut per pass and alleviating strain on the blade holder.















BLADE ANGLE OPTIMISED FOR A PERFECT CUT
Our blade mount design allows for greater durability and cutting power. The rotor on our excavator mulchers maintains its power throughout the blades’ lives.

ROADSIDE MAINTENANCE
Whether it’s to clear the sides of hunting lanes, trails, roads or highways, the power and speed of our mulcher heads are unparallel to anything else on the market.

FOREST FIRE PREVENTION WITH OUR FORESTRY MULCHERS
Cutting firebreaks can be a safe and efficient way to limit the spread of forest fires.

INFRASTRUCTURE
Excavator mulchers can easily manage new roads to maintain a right of way under electrical lines or over pipelines.

LAND MANAGEMENT
Mulching heads are the most efficient tool to cut underbrush and keep your private property accessible.

Models



VM-25SK

VM-35SK

VM-40SL

VM-50SR

VM-60SR

VM-65SV

Excavator Size Tons  5 to 8 8 to 12 12 to 15 15 to 20 20 to 25 25 to 40
Recommended Minimum Carrier power  HP (KW)  37 (50) 40 (54) 48 (65) 59 (80) 96 (130) 127 (170)
Cutting Width IN (CM) 28 (70) 37 (95) 42 (107) 48 (123) 59 (149) 65 (165)
Cutting Dist. from Ground Level IN (CM) 0.25 (0.64) 0.25 (0.64) 0.25 (0.64) 0.25 (0.64) 0.25 (0.64) 0.87 (2.2)
Number of Blades on Rotor IN (CM) 9 13 14 17 21 21
Optimal Target Material Diameter IN (CM) <4 (<10) 4 (10) 6 (15) 10 (25) 15 (40) 20 (50)
Exterior Length IN (CM) 41 (104) 50 (127) 57 (145) 66 (168) 77 (194) 89 (225)
Exterior Height IN (CM) 31 (77) 31 (77) 34 (85) 35 (89) 35 (89) 40 (102)
Exterior Width IN (CM) 23 (58) 25 (63) 25 (64.5) 28 (71) 28 (71) 29 (74)
Rotor Diameter IN (CM) 15 (38) 15 (38) 16 (41) 18 (45) 18 (45) 20 (50)
Approximate Typical Weight LBS (KG) 1,100 (499) 1,307 (522) 1,668 (757) 2,150 (975) 2,614 (1,188) 3,707 (1,681)
Variable Displacement Axial Piston Motor CC 28 60 80 110 110 160
Min. Required Continous Flow gal/min; (l/min) 15 (57) 23 (87) 30 (114) 42 (159) 42 (159) 51 (193)
Max. Required
Continuous Flow
gal/min; (l/min) 22 (83) 38 (144) 44 (167) 63 (238) 63 (238) 91 (344)
Max. Operating
Pressure
PSI (BAR) 6,000 (410) 6,000 (410) 6,000 (410) 6,000 (410) 6,000 (410) 6,000 (410)
Rotating Speed RPM 3800 3500 3500 3000 3000 3000
Tilting System   Optional Optional Optional Optional Optional Optional
Bolt-on Wear Liner   N/A N/A Included Included Included Included
Grapple System   N/A Optional Optional Optional Optional Optional

Our excavator mulchers are available for excavators weighing between 5 to 40 tons. Our Excavator Mulchers are compatible with most standard excavator models, making it a flexible tool for various land clearing applications.

Shearex's forestry mulchers fit regular-sized excavators, and we also offer mini-excavator mulchers for smaller excavators.

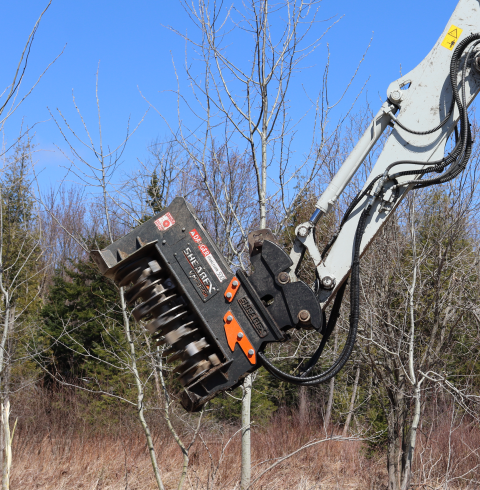

Optional tilt system - The tilt system on our mulching heads for excavators allows for increased flexibility and superior visibility. Using the right technique, the tilt can also increase productivity by letting gravity do the majority of the work.

Optional back grapple - Move and sort through smaller materials or pile them up for greater mulching control with Shearex’s excavator mulcher head VM model.

Different types of blade - Choose between our carbide tooth or blade, depending on your operations.
