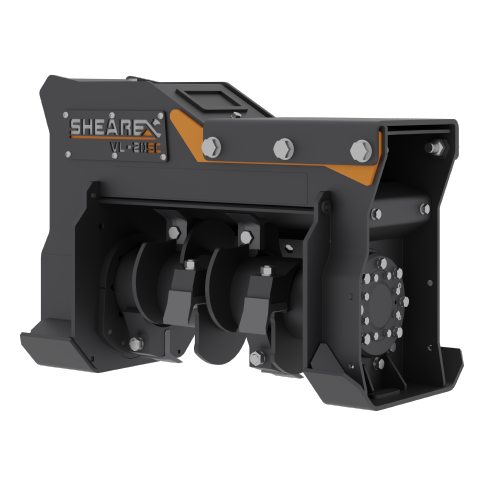

Light Duty Excavator Mulcher
-01HER4S83QCSSG230RZJEMS192.png)
VL Series
Shearex’s Mini Bite Limiter Mulcher attachment is the ultimate tool for fast and efficient roadside maintenance, invasive species removal, land clearing, and underbrush maintenance! With years of experience, Shearex offers one of the most powerful land-clearing attachments on the market, featuring a quick and easy coupling system.
Every VL mulcher comes with a complimentary kit packed with essentials to get you up and running. This customer kit contains eight blades (bolts included), one tube of grease, a Shearex cap, the user manual, and a sharpening guide.
- Poly-Chain®️ Carbon transmission belt.
- Internal shell/ wear plate made of Hardox®️ 500 for ultimate wear resistance.
- Durable, drainless piston motor built to withstand maximum pressure up to 5,800 PSI and return line pressure up to 360 PSI. Enjoy enhanced durability and speed while minimizing internal wear.
- Extremely durable oversized axles and bearings.
- Bolted counter blade for easy replacement and added durability.
Product Specification
|
Models |
VL-20SC |
VL-30SC |
|
|---|---|---|---|
| Excavator size | Tons | 2 to 4 | 3 to 4 |
| Recommended Minimum Carrier power | kW (hp) | 15 (20) | 23 (30) |
| Cutting Width | in (cm) | 21.25 (54) | 31 (78) |
| Cutting Distance from cutting ground level | in (cm) | 0.25 (0.64) | 0.25 (0.64) |
| Number of Blades on Rotor | 8 | 12 | |
| Optimal Target Material Diameter | in (cm) | <3 (<7.5) | <4 (<10) |
| Exterior Lenght | in (cm) | 32.5 (83) | 42 (107) |
| Exterior Height | in (cm) | 22.75 (58) | 22.75 (58) |
| Exterior Width | in (cm) | 18 (45) | 18 (45) |
| Rotor Diameter | in (cm) | 13 (33) | 13 (33) |
| Approximate Typical Weight | lbs (KG) | 430 (195) | 195 (430) |
| Fixe Axial Piston Motor | cc | 12 | 18 |
| Minimum required Continous Flow | gal/min (l/min ) | 8 (30) | 13 (49) |
| Maximum allowed Continous Flow | gal/min (l/min) | 18 (68) | 18 (68) |
| Maximum Operating pressure | bar (PSI) | 400 (5,800) | 400 (5,800) |
| Rotating Speed | rpm | 3500 | 3500 |
| Pressure Line I.D. | # (IN) | #10 (0,625) | #10 (0,625) |
| Return Line I.D. | # (IN) | #10 (0,625) | #10 (0,625) |
| Drain Line I.D. | # (IN) | None | None |
| Pulley Ratio | 1:1 | 1:1 | |
| Tilting system | None | None | |
| Bolt-on Wear liner | None | None | |
| Grappling Hook | None | None | |
| Heel | Optional | Optional | |
| Front deflector | Optional | Optional | |
| 18cc motor | Optional | Standard | |
